GAS SPRING 173MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722400 Gas spring 173mm 50N thread/lug 1pcs 173mm+xx 128g A=50mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722410 Gas spring 173mm 100N thread/lug 1pcs 173mm+xx 128g A=50mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722420 Gas spring 173mm 150N thread/lug 1pcs 173mm+xx 128g A=50mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722430 Gas spring 173mm 300N thread/lug 1pcs 173mm+xx 128g A=50mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
720430 Gas spring 173mm 600N thread/lug 1pcs 173mm+xx 130g A=50mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

GAS SPRING 273MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722060 Gas spring 273mm 100N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722065 Gas spring 273mm 150N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722070 Gas spring 273mm 200N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722080 Gas spring 273mm 300N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722081 Gas spring 273mm 400N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722085 Gas spring 273mm 450N thread/lug 1pcs 273mm+xx 185g A=100mm Øy=19mm Øx=8mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

GAS SPRING 382MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722018 Gas spring 382mm 100N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722019 Gas spring 382mm 150N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722020 Gas spring 382mm 200N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722030 Gas spring 382 mm 300N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722035 Gas spring 382 mm 400N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722040 Gas spring 382mm 500N thread/lug 1pcs 382mm+xx 320g A=150mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

GAS SPRING 482MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722179 Gas spring 482mm 100N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722180 Gas spring 482mm 150N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722090 Gas spring 482mm 250N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722100 Gas spring 482mm 300N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722110 Gas spring 482mm 400N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722120 Gas spring 482mm 500N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722130 Gas spring 482mm 600N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722150 Gas spring 482mm 700N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722160 Gas spring 482mm 800N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722140 Gas spring 482mm 900N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722190 Gas spring 482mm 1000N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722170 Gas spring 482 mm 1200N thread/lug 1pcs 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722172 Gas spring 482mm 1300N thread/lug 1kpl 482mm+xx 390g A=200mm Øy=22mm Øx=10mm B=8,2mm C=M8
KPL
Add
Failed to add to cart

GAS SPRING 582MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722195 Gas spring 582mm 60N thread/lug 1pcs 582mm+xx A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722269 Gas spring 582m 100N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722270 Gas spring 582mm 150N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722294 Gas spring 582mm 200N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722290 Gas spring 582mm 300N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722280 Gas spring 582mm 350N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722305 Gas spring 582mm 400N thread/lug 1pcs 582mm+xx 460g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722300 Gas spring 582mm 500N thread/lug 1pcs 582mm+xx 455g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722310 Gas spring 582mm 700N thread/lug 1pcs 582mm+xx 460g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722320 Gas spring 582mm 900N thread/lug 1pcs 582mm+xx 464g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722330 Gas spring 582mm 1200N thread/lug 1pcs 582mm+xx 472g A=250mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

GAS SPRING 682MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722339 Gas spring 682mm 100N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722340 Gas spring 682mm 150N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722350 Gas spring 682mm 300N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722360 Gas spring 682mm 500N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722370 Gas spring 682mm 700N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722380 Gas spring 682mm 900N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722390 Gas spring 682mm 1200N thread/lug 1pcs 682mm+xx 530g A=300mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

GAS SPRING 782MM THREAD/LUG

Controlled pushing, lifting or lowering, without a separate power source.

Product number Name Package size Length Net weight Stroke length Cylinder Ø Piston rod Ø Lug orifice Ø Thread Product card Add to request for quotation
722199 Gas spring 782mm 150N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722200 Gas spring 782mm 250N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722220 Gas spring 782mm 400N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722230 Gas spring 782mm 600N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722250 Gas spring 782mm 800N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722251 Gas spring 782mm 900N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722260 Gas spring 782mm 1100N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart
722265 Gas spring 782mm 1300N thread/lug 1pcs 782mm+xx 600g A=350mm Øy=22mm Øx=10mm B=8,2mm C=M8
PCS
Add
Failed to add to cart

If you have trouble controlling movement without a separate power source, we’ll be glad to help.
In addition to standard gas springs, Bansbach manufactures lockable, stainless steel and aluminium gas springs in very small batches, even on an individual basis. You’ll be sure to find a suitable solution for your needs in the product range. If you can’t find the right product off the shelf, we’ll work with Bansbach’s designers to find a solution that’s sure to meet your needs.

You can also design your own gas spring using Bansbach’s configurator.

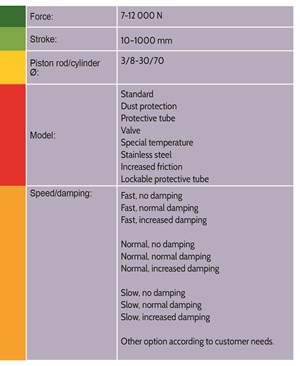

What is possible?

Taulukko kaasujouset mika on mahdollista en
