Product number Name Material Package size Length Width Net weight Material strength Hinge pin Joint spacing Product card Add to request for quotation
820005 Hinge 30x30x5mm Untreated steel 1pck/100pcs 30mm 30mm 85g 5mm 6mm 5
PCS
Add
Failed to add to cart
821060 Hinge 30x60x5mm Untreated steel 1pcs 30mm 60mm 160g 5mm 6mm 5
PCS
Add
Failed to add to cart
820010 Hinge 40x40x3mm Untreated steel 1pcs 40mm 40mm 90g 3mm 4mm 5
PCS
Add
Failed to add to cart
820020 Hinge 40x60x3mm Untreated steel 1pcs 40mm 60mm 130g 3mm 4mm 5
PCS
Add
Failed to add to cart
820031 Hinge 40x60x5mm Untreated steel 1pcs 40mm 60mm 210g 5mm 6mm 5
PCS
Add
Failed to add to cart
820030 Hinge 40x60x5mm lubricated Untreated steel 1pcs 40mm 60mm 215g 5mm 6mm 5
PCS
Add
Failed to add to cart
820029 Hinge 40x60x5mm lubricated, 90˚ nipple Untreated steel 1pcs 40mm 60mm 225g 5mm 6mm 5
PCS
Add
Failed to add to cart
821029 Hinge 50x80x6mm Untreated steel 1pcs 50mm 80mm 415g 6mm 8mm 5
PCS
Add
Failed to add to cart
821030 Hinge 50x80x6mm lubricated Untreated steel 1pcs 50mm 80mm 410g 6mm 8mm 5
PCS
Add
Failed to add to cart
821070 Hinge 60x40x6mm lubricated Untreated steel 1pcs 60mm 40mm 260g 6mm 8mm 5
PCS
Add
Failed to add to cart
821050 Hinge 60x80x6mm lubricated Untreated steel 1pcs 60mm 80mm 480g 6mm 8mm 5
PCS
Add
Failed to add to cart
821090 Hinge 60x120x6mm lubricated Untreated steel 1pcs 60mm 120mm 715g 6mm 8mm 5
PCS
Add
Failed to add to cart
821040 Hinge 70x80x6mm lubricated Untreated steel 1pcs 70mm 80mm 575g 6mm 8mm 7
PCS
Add
Failed to add to cart
821041 Hinge 70x80x6mm lubricated, pin the other way round Untreated steel 1pcs 70mm 80mm 575g 6mm 8mm 7
PCS
Add
Failed to add to cart
820140 Hinge 70x100x6mm lubricated Untreated steel 1pcs 70mm 100mm 720g 6mm 8mm 7
PCS
Add
Failed to add to cart
820180 Hinge 100x100x7mm lubricated Untreated steel 1pcs 100mm 100mm 1.235kg 7mm 8mm 7
PCS
Add
Failed to add to cart
821080 Hinge 80x80x7mm lubricated Untreated steel 1pcs 80mm 80mm 780g 7mm 8mm 7
PCS
Add
Failed to add to cart
820181 Hinge 100x100x7mm lubricated, 90˚ nipple Untreated steel 1pcs 100mm 100mm 1.235kg 7mm 8mm 7
PCS
Add
Failed to add to cart

Related products

Product number Name Package size Net weight Product card Add to request for quotation
830050 Hinge pin 8x105 mm 1pcs 36g
PCS
Add
Failed to add to cart
830090 Grease nipple 1pcs 3g
PCS
Add
Failed to add to cart

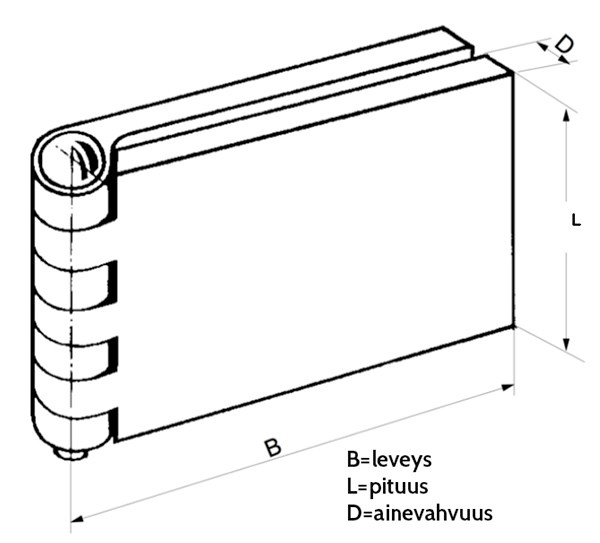

Technical data.
